Clipt

Stool project

The finished Clipt stool on gravel: a triangular wooden seat held by bent silver steel legs.

A public stool exploring the contrast between an elegant form and utilitarian daily use. A wooden seat held up by bent-steel legs, built to fit a wide range of body types and survive the elements.

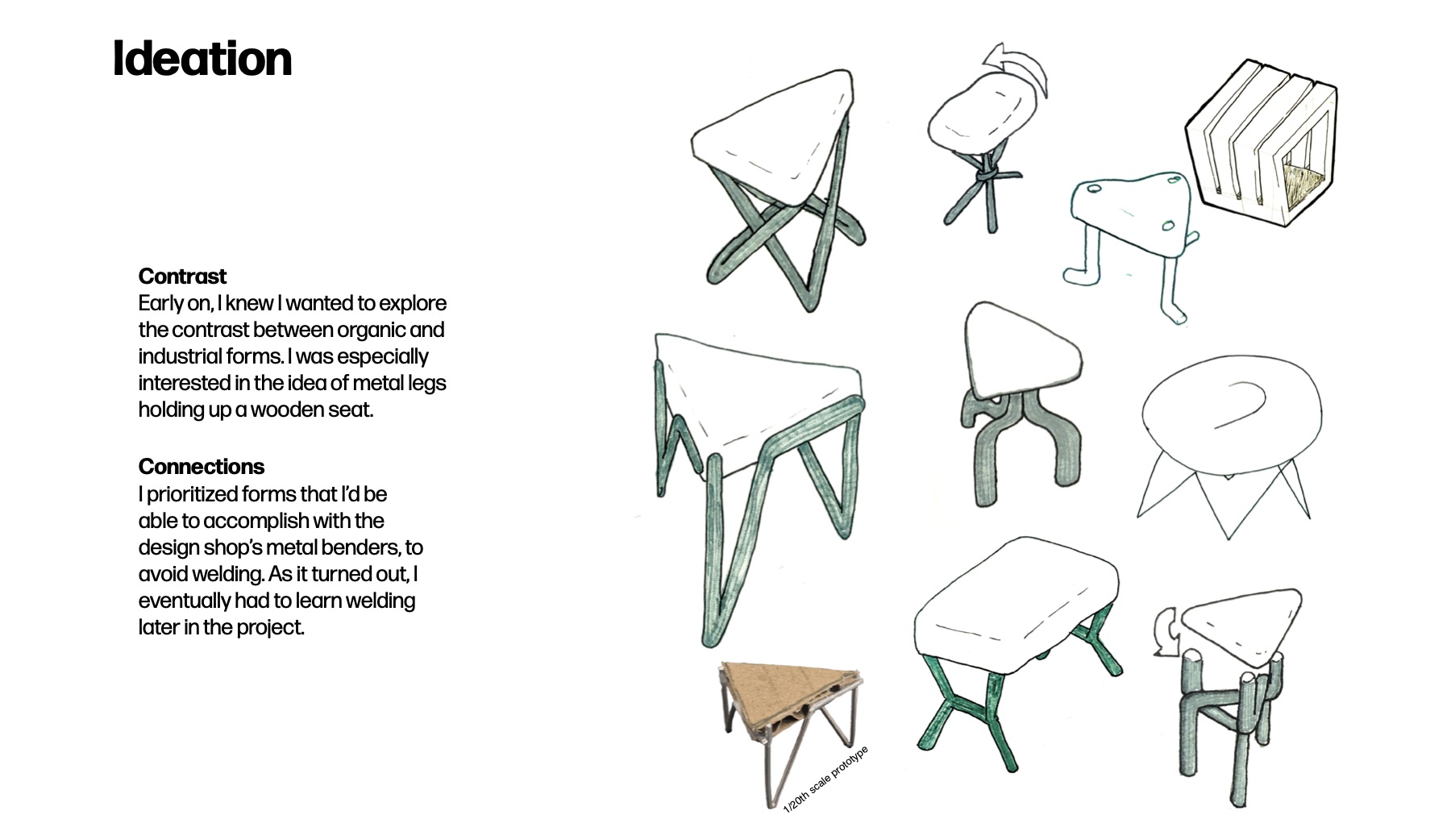

Ideation

Contrast

Early on, I knew I wanted to explore the contrast between organic and industrial forms. I was especially interested in the idea of metal legs holding up a wooden seat.

Connections

I prioritized forms that I’d be able to accomplish with the design shop’s metal benders, to avoid welding. As it turned out, I eventually had to learn welding later in the project.

Marker sketches of nine stool concepts with wooden seats and bent metal legs, next to a small cardboard-and-wire model.
Concept sketches, with a 1/20th scale prototype at the bottom left

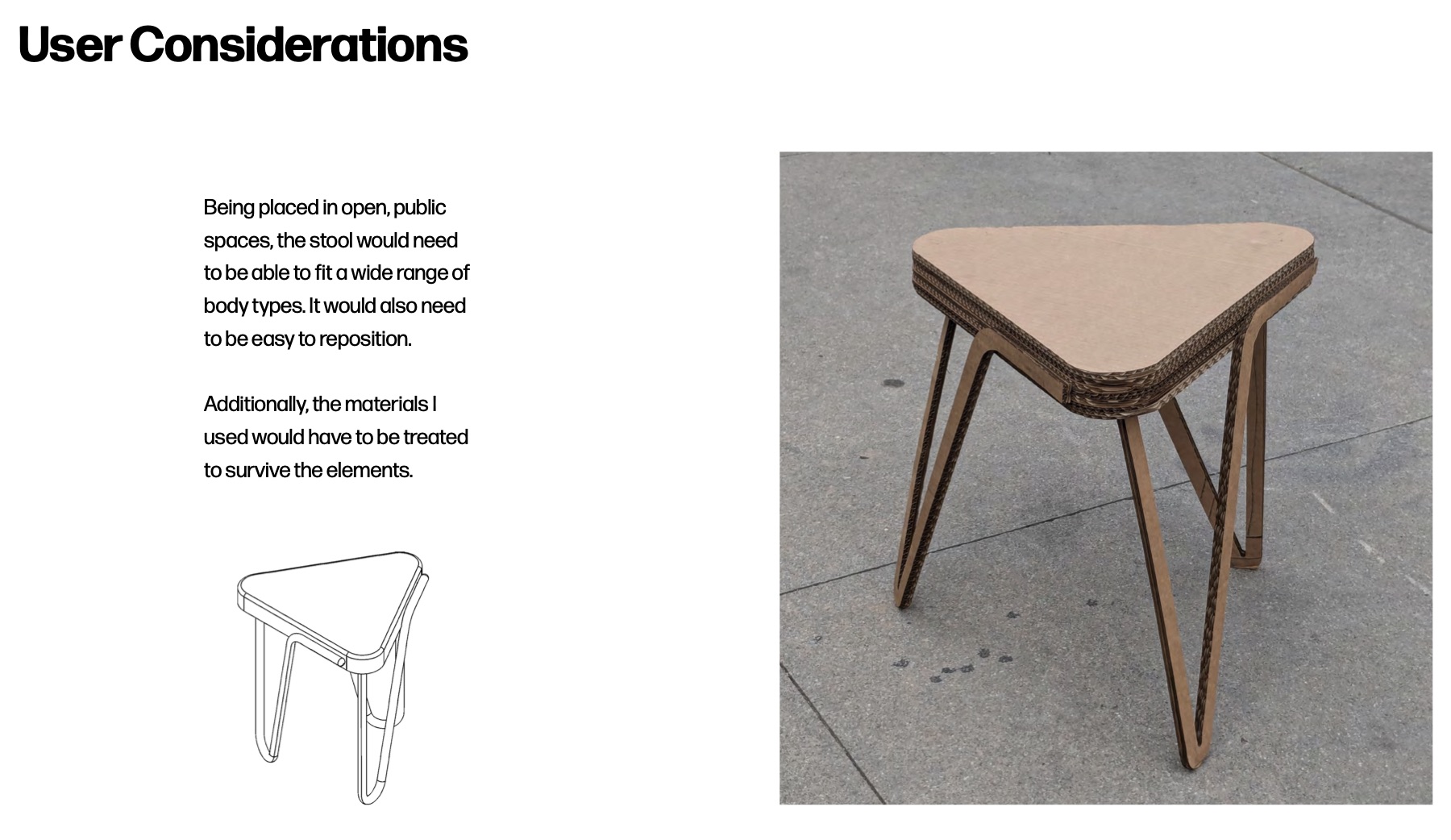

User Considerations

Being placed in open, public spaces, the stool would need to be able to fit a wide range of body types. It would also need to be easy to reposition.

Additionally, the materials I used would have to be treated to survive the elements.

Line drawing of the stool: a rounded triangular seat on two bent-bar leg frames.
Full-size cardboard prototype of the stool standing on a sidewalk.

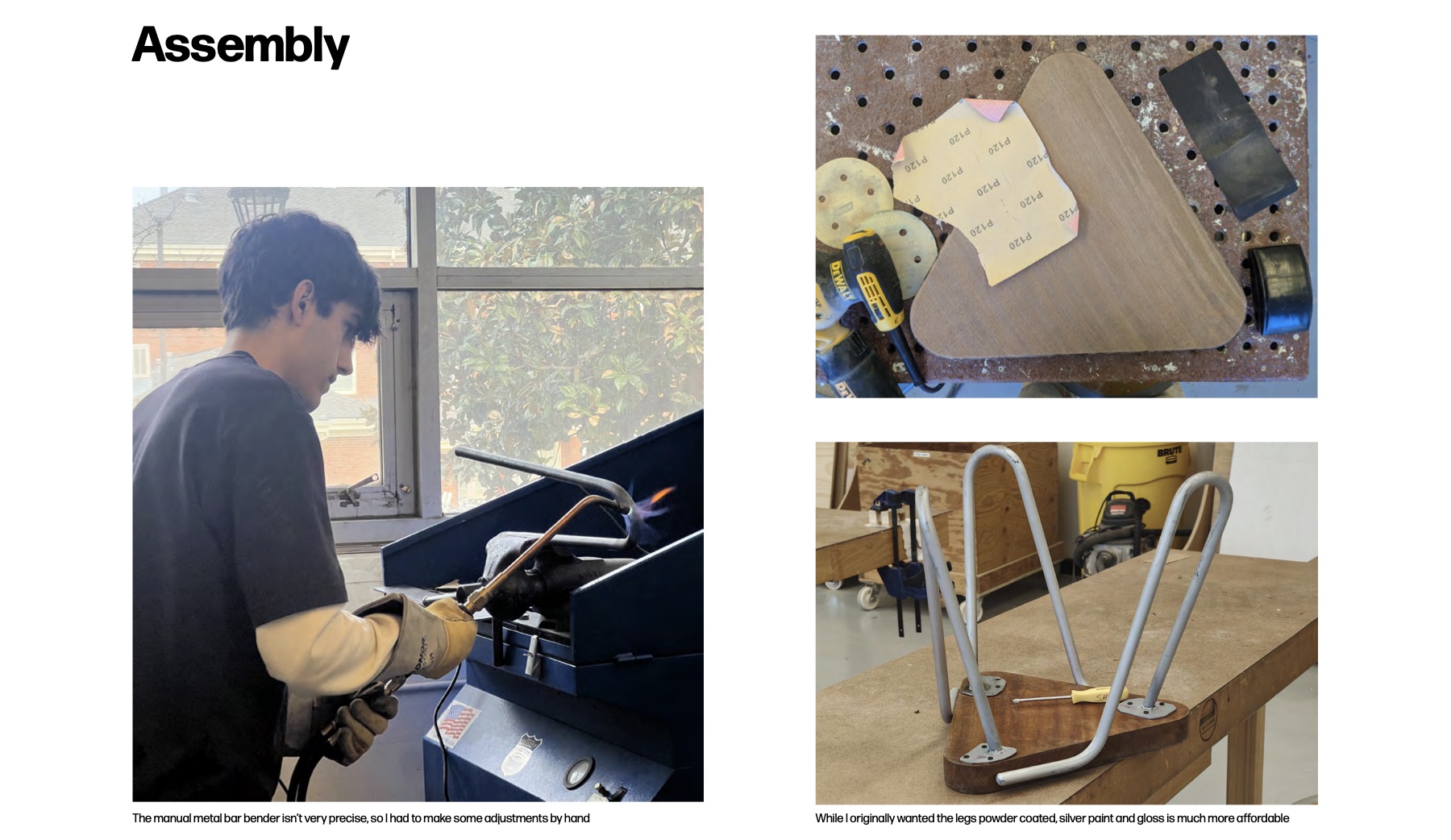

Assembly

Victor heating a steel bar with a torch at the metal bender.
The manual metal bar bender isn’t very precise, so I had to make some adjustments by hand
The triangular wooden seat on a workbench with sandpaper and a sander.
The stool upside down on a workbench with the painted legs screwed to the seat.
While I originally wanted the legs powder coated, silver paint and gloss is much more affordable

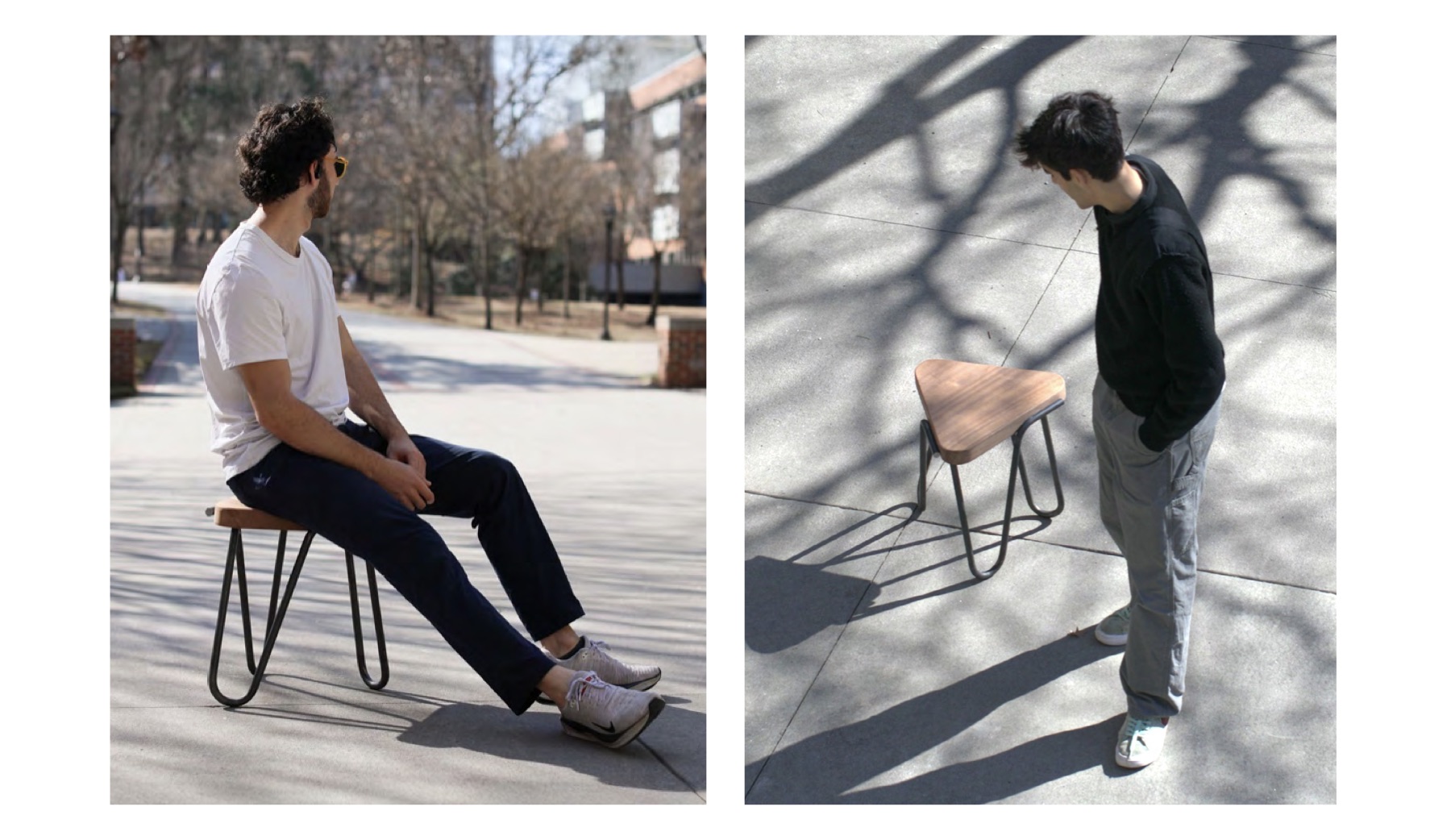

Final Model

A person sitting on the stool on a campus walkway.
A person standing beside the stool, seen from above in dappled sunlight.
